• Max. saw projection: 75 mm
• Higher performance: Book height: 15 mm x 4 sheets
• Designed for customerized closets workshops
• Higher energy savings

Model   CX-8 CX-10 Max. Saw Projection   75 mm 75 mm Max. Length of cut   2550 mm 3150 mm Sawblade Motor   15 HP 15 HP Saw Carriage Motor   2 HP 2 HP Pusher Motor   1 KW 1 KW Pusher Speed   0~60 M/min 0~60 M/min Saw Carriage Speed   0~80 M/min 0~80 M/min Air Pressure Requirement   6~7 kg/cm2 6~7 kg/cm2 Air consumption   35~40 l /min 35~40 l /min Vacuum Cleaner Requirement   45~50 m3/sec 45~50 m3/sec Vacuum Speed   20 m/sec 20 m/sec Main Sawblade Dia. (Arbor)   14" (1") 14" (1") Scoring Sawblade Dia. (Arbor)   180 mm (d50) 180 mm (d50) Air Cushion Table   400 x 1200 mm x 3 sets 400 x 1200 mm x 3 sets Packing Dimention   5300 x 2250 x 2020 mm 5800 x 2250 x 2020 mm Packing Dimention   - - Machine Weight(Net)   4050 kg 4200 kg Machine Weight(Gross)   4200 kg 4350 kg Loading…

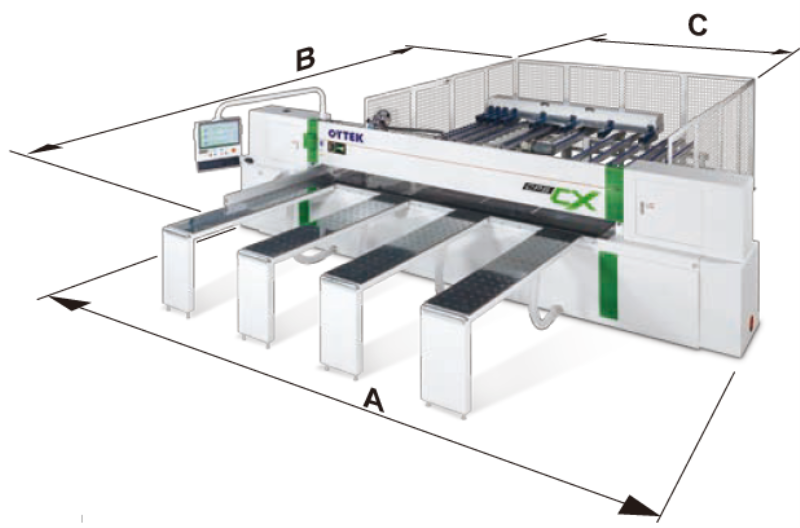

Model   CX-8 CX-10 A   5200 mm 5700 mm B   5300 mm 5900 mm C   2900 mm 3450 mm Loading…
