• Max. saw projection 125 mm
• Book height: 18 mm x 6 sheets / 15 mm x 7 sheets
• High throughput capability
• Reliable and easy operation
• Higher energy savings

Model   CN-10 CN-12 Max. Saw Projection   125 mm 125 mm Max. Length of cut   3150 mm 3750 mm Sawblade Motor   25 HP 25 HP Saw Carriage Motor   2 HP 2 HP Pusher Motor   1 KW 1 KW Pusher Speed   0~60 M/min 0~60 M/min Saw Carriage Speed   0~90 M/min 0~90 M/min Air Pressure Requirement   6~7 kg/cm2 6~7 kg/cm2 Air consumption   35~40 l /min 35~40 l /min Vacuum Cleaner Requirement   55~60 m3/sec 55~60 m3/sec Vacuum Speed   25 m/sec 25 m/sec Main Sawblade Dia. (Arbor)   16" / 18" (d75) 16" / 18" (d75) Scoring Sawblade Dia. (Arbor)   180 mm (d50) 180 mm (d50) Air Cushion Table   600 x 1800 mm x 3 sets 600 x 1800 mm x 3 sets Packing Dimention   5800 x 1600 x 2020 mm 6500 x 1600 x 2020 mm Packing Dimention   4300 x 660 x 1500 mm 4800 x 660 x 1500 mm Machine Weight(Net)   4200 kg 4400 kg Machine Weight(Gross)   4350 kg 4550 kg Loading…

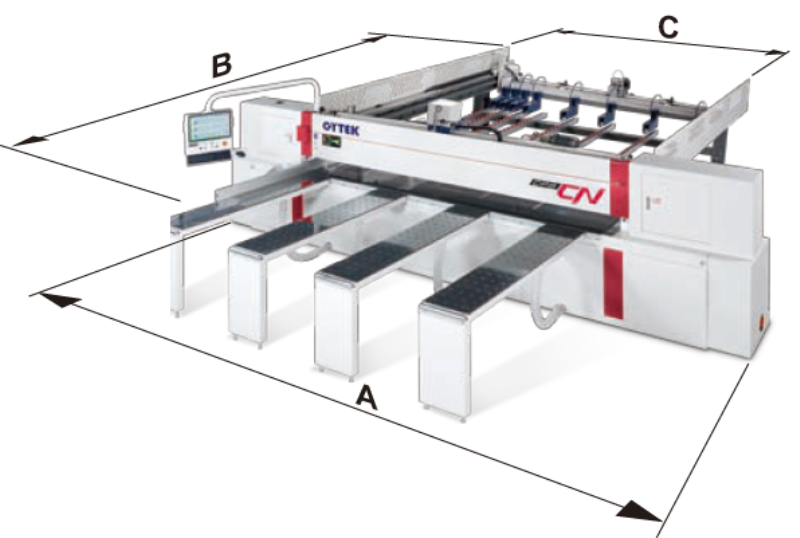

Model   CN-10 CN-12 A   5700 mm 6400 mm B   5900 mm 6500 mm C   3600 mm 4150 mm Loading…
