• High Ratio of Price to Performance Saws
• Max. saw projection 100 mm
• Book height: 18mm x 5 sheets / 15mm x 6 sheets
• Highly productive thanks to optimization software
• Designed for Mass-Customization factories
• Higher energy savings

Model   AG-10 AG-12 Max. Saw Projection   100 mm 100 mm Max. Length of cut   3150 mm 3750 mm Sawblade Motor   18 HP 18 HP Saw Carriage Motor   2 HP 2 HP Pusher Motor   1 KW 1 KW Pusher Speed   0~60 M/min 0~60 M/min Saw Carriage Speed   0~90 M/min 0~90 M/min Air Pressure Requirement   6~7 kg/cm2 6~7 kg/cm2 Air consumption   35~40 l /min 35~40 l /min Vacuum Cleaner Requirement   50~55 m3/sec 50~55 m3/sec Vacuum Speed   25 m/sec 25 m/sec Main Sawblade Dia. (Arbor)   14" / 16"(d75) 14" / 16"(d75) Scoring Sawblade Dia. (Arbor)   180 mm (d50) 180 mm (d50) Air Cushion Table   600 x 1800 mm x 3 sets 600 x 1800 mm x 3 sets Packing Dimention   5800 x 1600 x 2020 mm 6500 x 1600 x 2020 mm Packing Dimention   4300 x 660 x 1500 mm 4800 x 660 x 1500 mm Machine Weight(Net)   4000 kg 4200 kg Machine Weight(Gross)   4150 kg 4350 kg Loading…

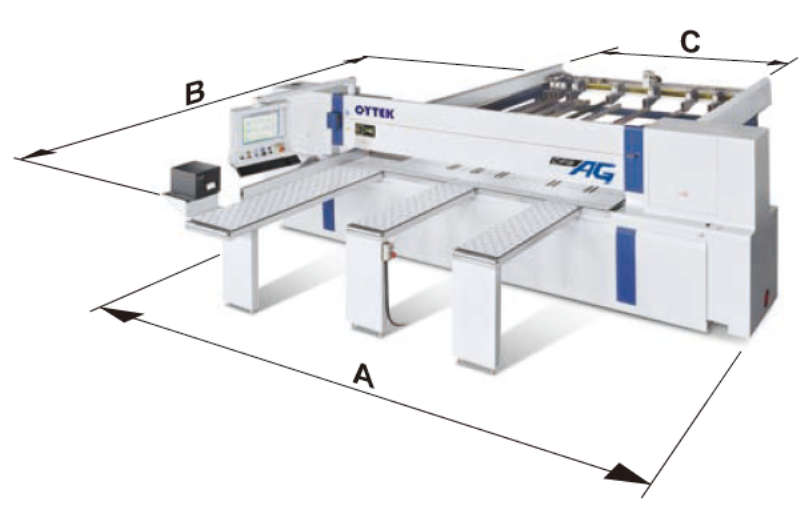

Model   AG-10 AG-12 A   5700 mm 6400 mm B   5900 mm 6500 mm C   3600 mm 4150 mm Loading…
