• Max. saw projection 150 mm
  • Book height: 18 mm x 7 sheets / 15 mm x 8 sheets
  • High throughput capability
  • Reliable and easy operation
  • Higher energy savings

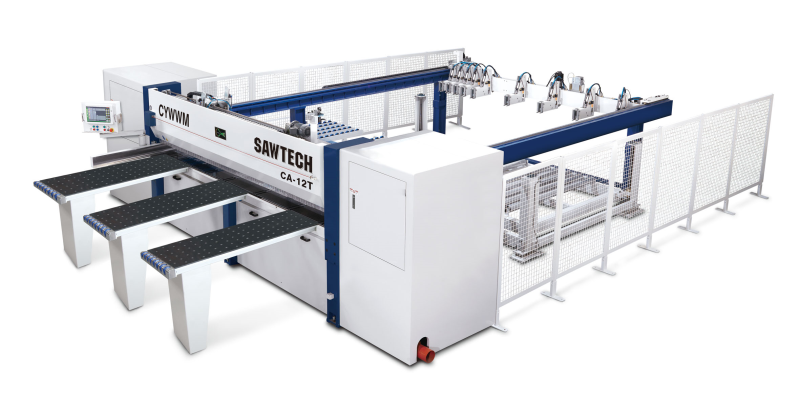

Model
CA-12TCA-15T
Max. Saw Projection
150 mm150 mm
Max. Length of cut
3750 mm4500 mm
Sawblade Motor
25 HP25 HP
Saw Carriage Motor
3 HP3 HP
Pusher Motor
1.5 KW1.5 KW
Pusher Speed
0~60 M/min0~60 M/min
Saw Carriage Speed
0~100 M/min0~100 M/min
Air Pressure Requirement
7~8 kg/cm27~8 kg/cm2
Air consumption
35~40 l /min35~40 l /min
Vacuum Cleaner Requirement
55~60 m3/sec55~60 m3/sec
Vacuum Speed
25 m/sec25 m/sec
Main Sawblade Dia. (Arbor)
18" / 20" (d50)18" / 20" (d50)
Scoring Sawblade Dia. (Arbor)
205 mm (d50)205 mm (d50)
Air Cushion Table
600 x 1800 mm x 4 sets600 x 1800 mm x 4 sets
Packing Dimention

Packing Dimention

Machine Weight(Net)

Machine Weight(Gross)

Model
CA-12TCA-15T
A
67007450
B
73008100
C
41004850
  • Ball-Screwed Type Rear Loading Lifter
  • Durable rack and pinion with shock absorber
  • (Optional) Quick change sawblade Spindle
    Type 2: Quick change spindle

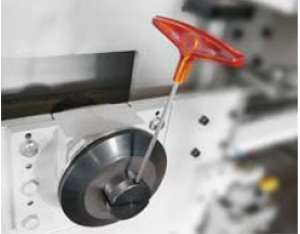

  • (Optional) Quick change sawblade Spindle
    Type 1: Quick change spindle set -
    Hex screw type manual-lock

  • High Precision Linear Motion Guide

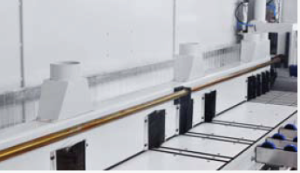

  • Efficient Dust Collecting Beam

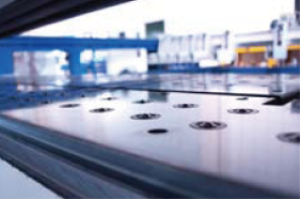

  • (Options) MACHINE MAIN WORK TABLE WITH AIR CUSHION
